Picture this: After a heavy rainstorm, rivers of water rush past your house, carving channels through your garden and carrying topsoil down the driveway. A week later during a dry spell, you’re out watering those same beds because the soil is bone-dry.
What if there was a centuries-old technique that could capture that rainwater right where you need it, reduce flooding, improve soil health, and cut your water bills—without expensive pumps, tanks, or complicated technology?
Enter the swale: one of nature’s most elegant water management solutions, hiding in plain sight along roadsides, in parks, and increasingly, in yards across the country.

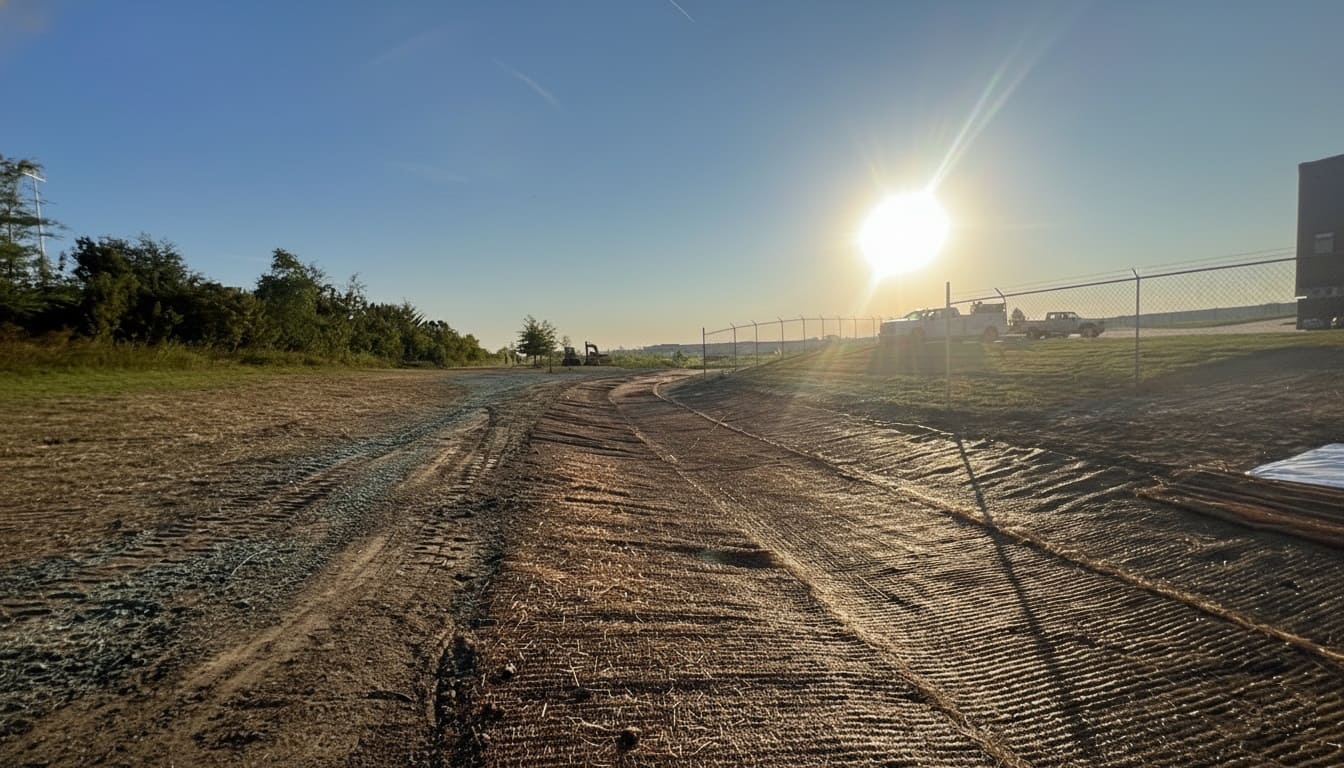

What Exactly Is a Swale?
A swale is a shallow, gently sloping channel designed to slow down, capture, and absorb stormwater.
Unlike the deep V-shaped ditches designed to rush water away quickly, swales are broad and flat-bottomed—wider than they are deep—giving rainwater a chance to pause, spread out, and infiltrate the ground.
The key distinction: a swale isn’t trying to get rid of your water—it’s trying to keep it.
These vegetated channels typically feature grass or native plants that slow water flow, filter pollutants, and protect soil from erosion.
The shallow cross-section and flat sides maximize what engineers call “wetted perimeter”—the surface area where flowing water contacts vegetation and soil, promoting infiltration and filtration.
Why Modern Landscapes Need This Ancient Solution
We’ve inadvertently created a water crisis through development. Every driveway, roof, patio, or sidewalk creates an impervious surface that sheds water instead of absorbing it.
That runoff picks up pollutants—motor oil, fertilizers, sediments—carrying them into storm drains and eventually our waterways.
A typical home’s 1,200 square foot roof captures over 30,000 gallons of rainwater annually. Most becomes runoff, overwhelming storm sewers and contributing to downstream flooding.
Then during dry periods, we irrigate our landscapes, pulling from the same water supplies we just sent away. It’s like letting money slip through your fingers, then borrowing to buy what you need.
Swales interrupt this cycle by:
- Recharging underground aquifers through infiltration
- Providing passive irrigation during dry periods
- Filtering pollutants naturally through soil and plant processes
- Reducing storm sewer burden and associated flooding
- Preventing erosion and topsoil loss
- Creating habitat corridors in developed areas
Understanding Swale Types: Matching Design to Purpose
Different swale designs serve different needs. Understanding the options helps you choose the right solution.
Grassed Swales: The Reliable Workhorse
Grassed Swales are the straightforward workhorses you’ve seen along residential streets.
Lined with turf and mowed like lawns, they require minimal maintenance while providing basic water conveyance and modest infiltration.
They’re ideal for homeowners wanting simple, low-maintenance solutions.

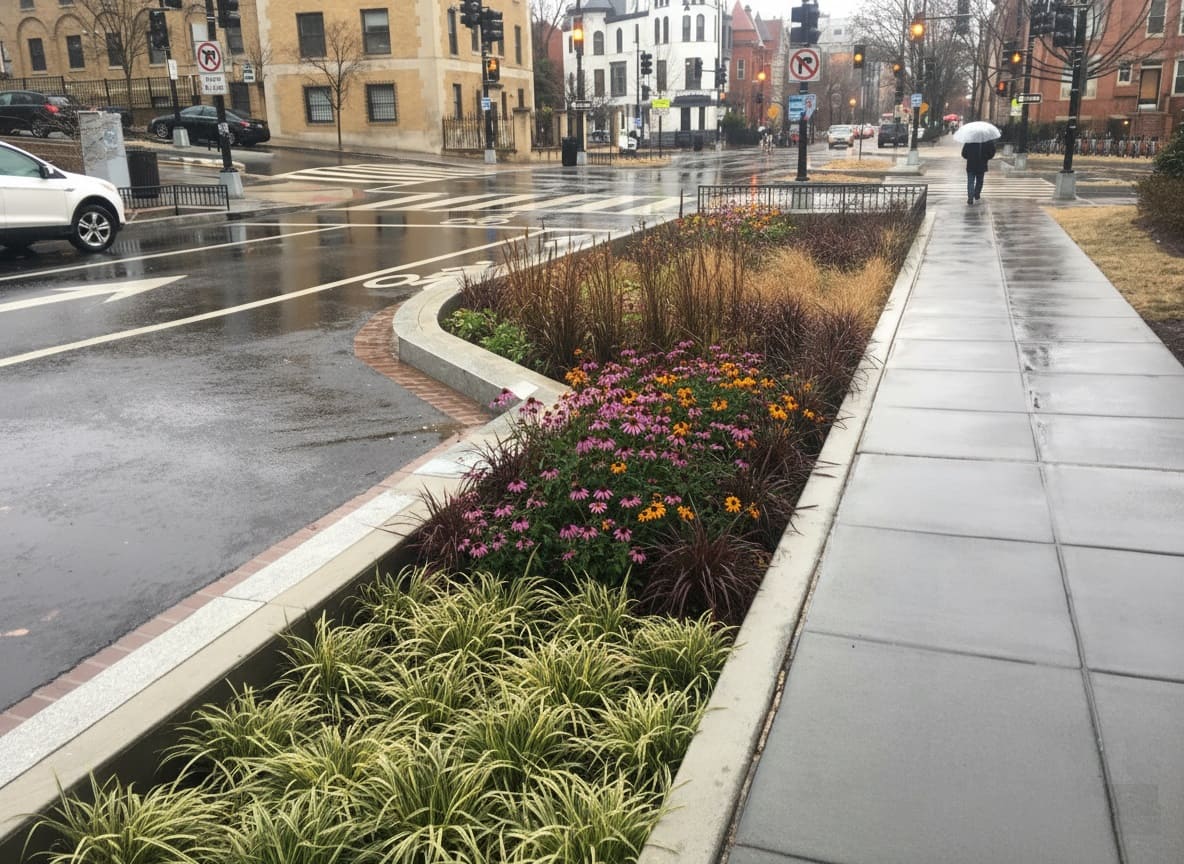

Bioswales: The Overachievers
Bioswales incorporate engineered soil layers and diverse native plantings specifically chosen for water filtration.
The “bio” refers to biological processes removing pollutants as water moves through specialized soil and around plant roots.
These excel in urban settings where runoff carries higher pollution loads from roads and parking lots. They require more design expertise but deliver superior water quality treatment.

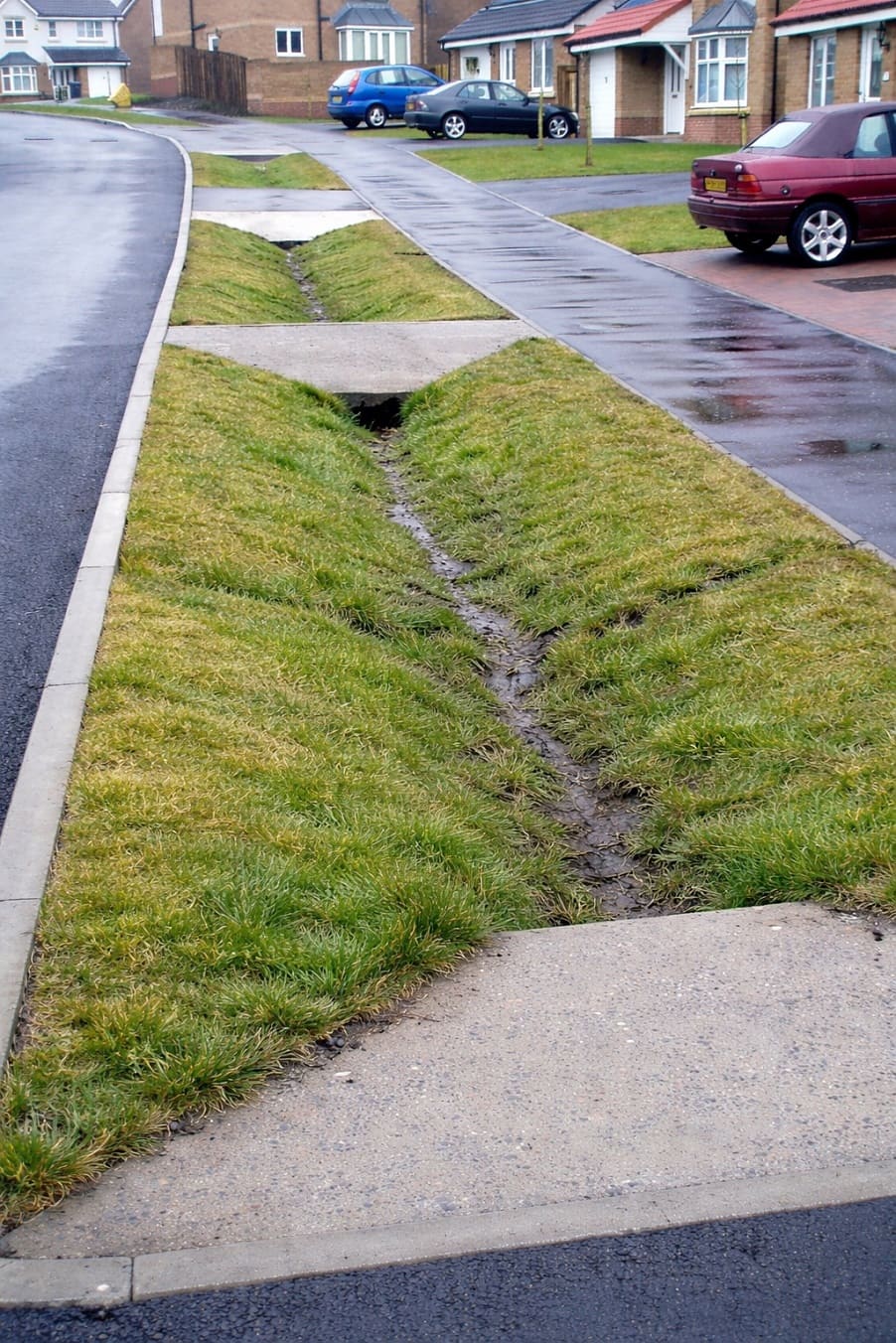

Dry Swales: The Quick-Drainers
Dry Swales drain quickly—typically within 24-48 hours—often using underdrain systems (perforated pipes beneath the surface) to facilitate infiltration even in slower-draining soils.
They stay dry between storms, making them perfect for residential front yards and high-visibility areas where standing water might raise concerns.

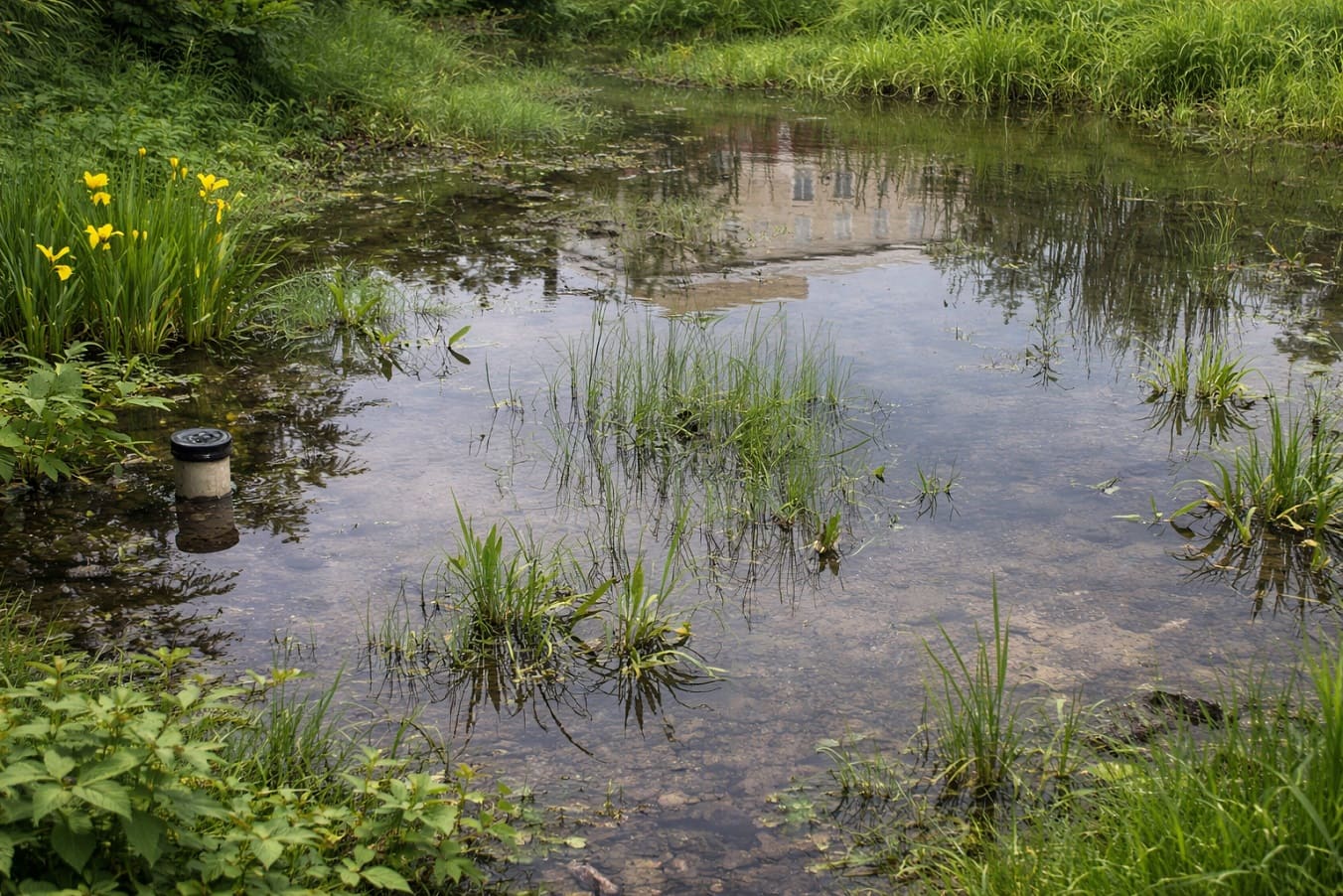

Wet Swales: The Wetland Wonders
Wet Swales hold water longer and may maintain permanent moisture, functioning essentially as linear wetlands. Planted with water-loving species, they provide exceptional treatment and wildlife habitat.
The tradeoff: they require more space and aren’t suitable for areas with children, pets, or concerned neighbors.

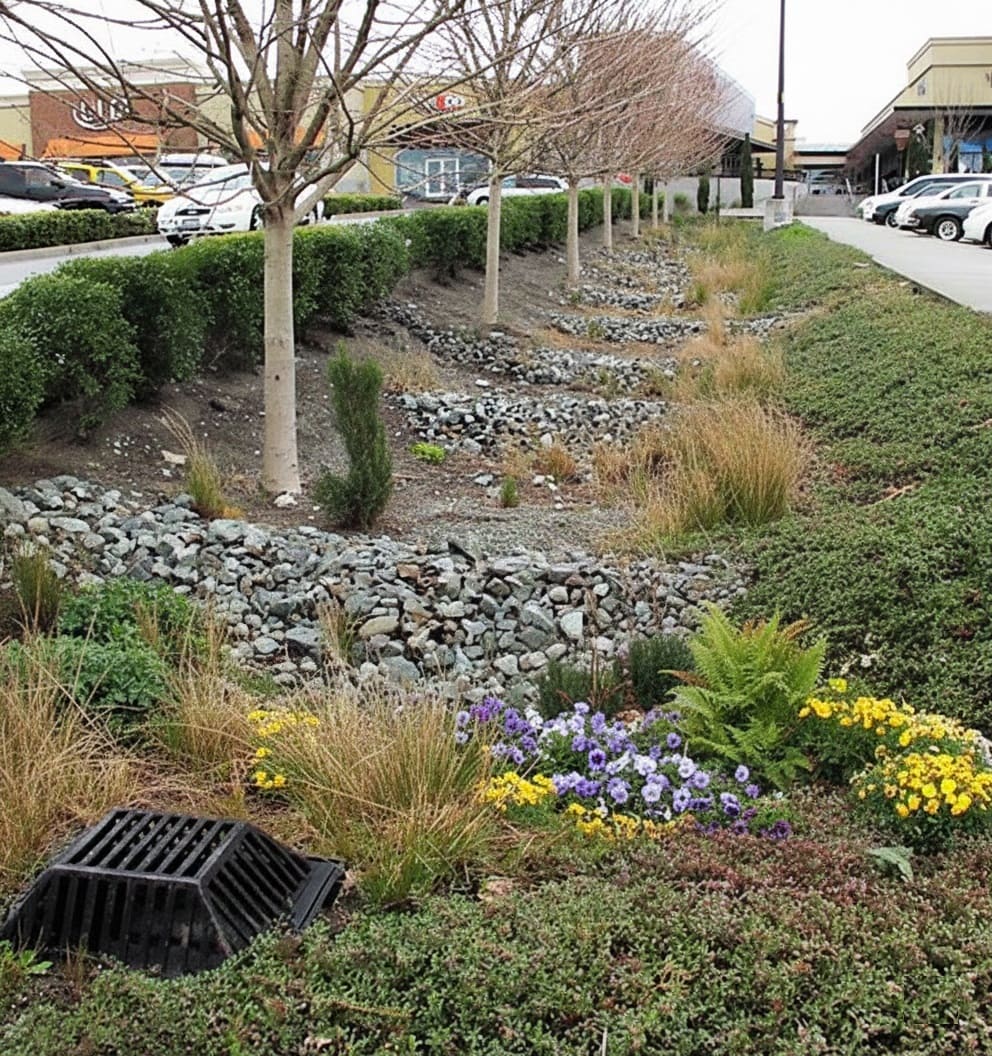

Enhanced Swales: The Upgraded Classics
Enhanced Swales upgrade basic grass channels with strategic features like check dams (small barriers creating temporary pools), amended soils, or diverse vegetation.
They’re the sweet spot for homeowners wanting better performance without full bioswale complexity.
The Science Behind the Solution
Swales work through four complementary mechanisms:
When fast-moving water enters the broad, vegetated channel, friction from grass blades and plant stems dramatically reduces velocity—like the difference between water rushing down concrete versus meandering through a meadow.
This slower movement gives other processes time to work.
The wide, flat bottom spreads concentrated flows into thin sheets, maximizing surface area for infiltration while minimizing erosive force. Instead of a damaging torrent cutting channels, you get gentle, even distribution.
As water lingers in the swale, gravity and soil structure pull it downward. Plant root systems create countless infiltration pathways, essentially pre-drilling channels into the soil.
In well-designed swales, most rainfall percolates underground within hours or days, depending on soil type.
Simultaneously, biological filtration occurs. Soil particles trap suspended solids through sedimentation. Plant roots and soil microorganisms absorb and break down nutrients, metals, and organic pollutants.
Research shows swales can remove 70-90% of suspended solids, 50-60% of phosphorus, and 40-50% of nitrogen from stormwater.
When Swales Work (and When They Don’t)
Before falling in love with the concept, assess whether swales suit your situation.
Ideal conditions include
- Gentle to moderate slopes (1-10%)
- Sufficient space (minimum 10-20 feet of length)
- Reasonably draining soil (not pure hardpan clay)
- Typical residential runoff volumes
- Desire to establish moisture-loving plantings
Reconsider if you have
- Slopes exceeding 10-15% (water moves too fast; consider terracing)
- Extremely heavy clay with very slow infiltration
- High water table within 2-3 feet of surface year-round
- Severely limited space
- Industrial contaminants threatening groundwater
- Restrictive codes prohibiting surface water features
In challenging conditions, alternatives like rain gardens (for confined spaces), check-log terraces (for steep slopes), or lined systems with underdrains (for contaminated runoff) may be more appropriate.
Here’s How to Plant on a Slope: Tips and Techniques for a Stunning Hillside Garden
Critical Design Factors
Successful swale design requires attention to several key elements.
Location and Safety
Position swales to intercept water before it causes problems—uphill from gardens needing moisture, along driveway edges, or at slope bases where water naturally accumulates.
Respect critical setbacks: minimum 10 feet from building foundations (water must drain away from structures), 18 feet from septic systems, and adequate clearance from underground utilities.
Consider sight lines if locating near driveways or streets. Shallow swales (under 6 inches deep) pose minimal tripping hazards, but deeper features should be clearly visible and located away from pathways.
Sizing Fundamentals
For residential applications, these dimensions provide a starting point:
- Depth: 6-18 inches for most situations. Deeper isn’t better—the goal is spreading water, not concentrating it.
- Width: 2-6 feet across the bottom, with total width (including sloped sides) of 5-12 feet. Wider maximizes infiltration area.
- Side slopes: Keep them gentle—3:1 to 4:1 (horizontal to vertical) means for every foot of depth, sides extend 3-4 feet outward. Gentle slopes are safer, easier to maintain, and less prone to erosion.
- Longitudinal slope: The gradual downward slope along the swale’s length should be 0.5-2%. Too flat causes ponding; too steep prevents infiltration. A 1% slope drops one foot over 100 feet of length.
- Length: Aim for 20-30 feet minimum. Longer provides more infiltration opportunity.
These dimensions should be adjusted based on your specific drainage area size, soil infiltration rate, and rainfall intensity.
A simple rule of thumb: swales can effectively manage runoff from about 1/4 to 1/2 acre of impervious surface, depending on design details.
Calculating Capacity
To estimate if your swale is adequately sized, you’ll need to calculate the runoff volume it must handle. A simplified approach:
A 1,000 square foot roof receiving 1 inch of rain produces about 600 gallons of runoff. For a swale 20 feet long, 3 feet wide at the bottom, and ponding 6 inches deep, the capacity is approximately 180 gallons.
This means you’d need multiple swales or a larger design to handle a significant storm from that roof area.
For precise calculations, especially for commercial projects or challenging sites, consult with a landscape architect or civil engineer familiar with stormwater management.
Soil Testing and Amendment
Before finalizing your design, test soil infiltration where you plan to build. Dig a hole about 12 inches deep and 6 inches wide, fill with water and let drain completely, then fill again and time the drainage:
- Under 2 hours: Excellent infiltration, basic swale design works
- 2-6 hours: Good infiltration, standard design appropriate
- 6-24 hours: Moderate infiltration, consider enhanced design or amended soil
- Over 24 hours: Poor infiltration, underdrain system likely needed
If native soil drains poorly, you can improve performance by excavating 12-18 inches deep and backfilling with a sandy loam mixture (approximately 50% sand, 30% loam, 20% compost).
This creates a more permeable layer while maintaining some water-holding capacity.
Check Dams: The Performance Multiplier
Check dams are low barriers (typically 6-12 inches high) placed across the swale at intervals, creating a series of small temporary pools.
They’re essential for swales with slopes over 2% and dramatically improve infiltration and sediment capture in any swale.
Space check dams so the ponded water behind one reaches the elevation of the next downstream.
This typically means 10-20 feet between dams. Construct them from logs secured with stakes, stacked stone, or earth berms.
Always include a central notch or spillway to concentrate overflow at high flows, preventing water from going around the sides and causing erosion.
Vegetation Selection
Plant choice depends on swale type, climate, and maintenance goals. For grassed swales, choose dense, hardy turf grasses that tolerate fluctuating moisture—fine fescues, native grasses like buffalograss, or tough cultivars bred for roadside use.
For bioswales and enhanced swales, select diverse natives suited to your region.
Deep-rooted perennials create infiltration pathways. Native grasses provide structure. Flowering plants support pollinators. Small shrubs or trees along the berm stabilize soil with woody roots.
In arid climates, place plants in the swale trench where moisture concentrates. In humid regions, plant primarily on the raised berm where roots won’t be waterlogged.
Avoid shallow-rooted annuals, aggressive spreaders like mint, and species poorly matched to expected moisture levels.
Discover Top 35+ Perennial Root Vegetables for a Low-Effort Garden

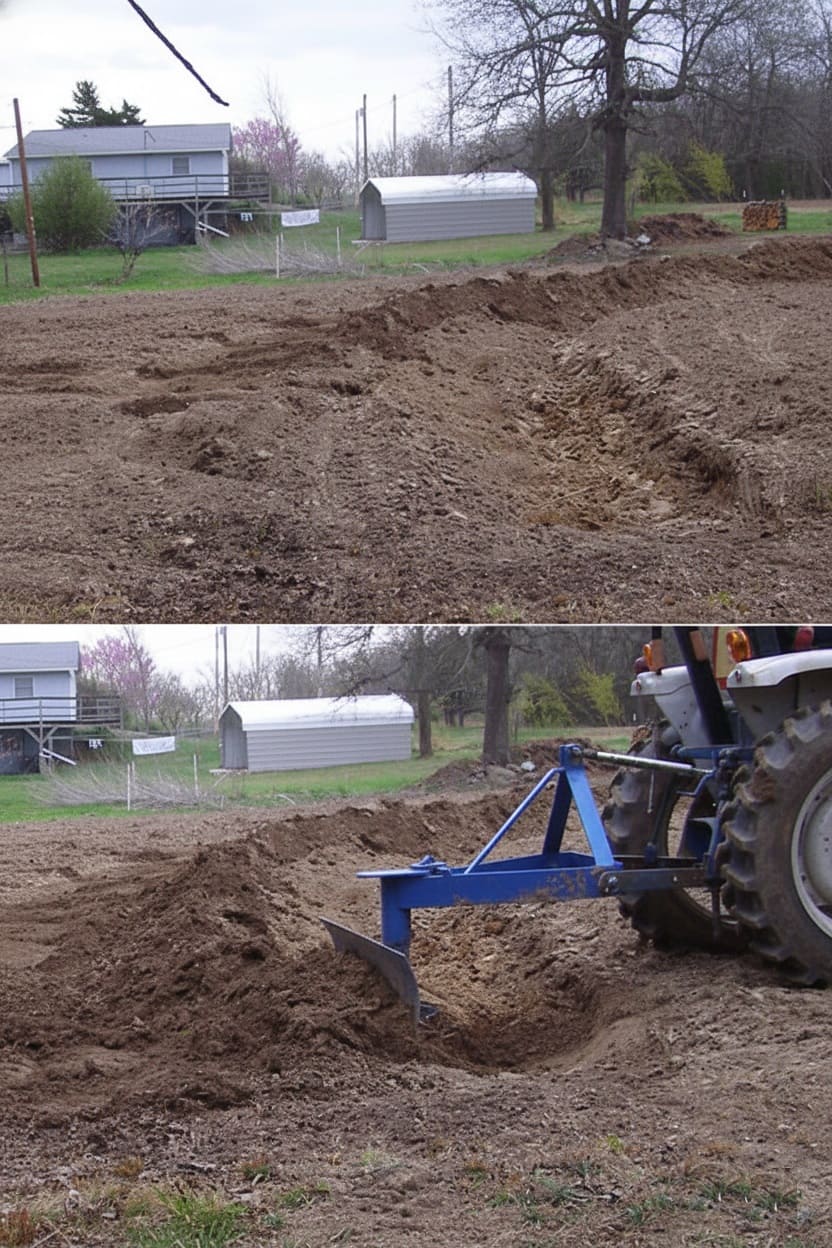

Building Your Swale: From Concept to Reality
Construction isn’t complicated, but careful execution separates success from frustration.
Phase 1: Observation and Planning (1-3 months)
Don’t rush this step. Spend several rain events watching water move across your property. Where does it come from? Where does it cause problems?
This observation, combined with a site sketch marking runoff sources, problem areas, and potential swale locations, provides the foundation for good design. Call 811 to locate underground utilities before digging anything.
Phase 2: Layout and Excavation (1-2 days for typical residential swale)
Mark your swale path using stakes and string, checking grade carefully with a laser level, line level, or homemade A-frame level.
An A-frame is simply a wooden tripod with a plumb bob hanging from the peak—when centered on your mark, the feet are at equal elevation.
Excavate to your planned depth, piling soil on the downhill side to create the berm. Keep the trench bottom loose (don’t compact it) for maximum infiltration.
If you encounter hardpan, break it up. Separate topsoil from subsoil to place the nutrient-rich layer on top where plants access it.
Phase 3: Refinement and Testing (1 day)
Before planting, test your swale with a hose. Water should flow smoothly without rushing or excessive pooling.
Verify grade using your leveling tool and adjust as needed. Install check dams if your design includes them, ensuring they’re secured against washout.
Phase 4: Planting and Protection (1-2 days)
Install vegetation immediately to prevent erosion. Start with the berm—these plants stabilize everything. Water thoroughly to aid establishment.
In the trench, match plants to expected moisture levels, placing water-lovers in the center and transitional species at the edges.
Apply 2-3 inches of mulch (avoid thick layers that might float away) and consider erosion control fabric for the first growing season on steep sides or in areas with intense rainfall.
Native seed mixes should include a temporary cover crop for quick stabilization.
Phase 5: Overflow Planning (Essential but often overlooked)
Every swale will eventually overflow during intense storms. Design an intentional overflow route directing excess water safely away from buildings toward a rain garden, another swale, or safe discharge point.
A simple spillway—a deliberately lowered section at one end of the swale—prevents uncontrolled breaching.
Tools and Materials
For a typical DIY residential swale, you’ll need:
- Shovel and wheelbarrow
- Rake and garden fork
- Leveling tool (laser level, line level, or A-frame)
- Stakes and string
- Plants or seed mix
- Mulch (2-3 cubic yards for a 30-foot swale)
- Erosion control fabric (optional but recommended)
- Materials for check dams if included (logs, stones, or boards)
Unveiling The Must-Have Gardening Tools: Essential Picks for Every Gardener
Maintenance: Less Work Than You’d Think
Swales require regular attention but less effort than traditional landscapes once established.
- Monthly during growing season:
Walk your swale looking for erosion, struggling vegetation, or unexpected pooling. Mow grassed swales to maintain 3-4 inch height—never scalp them. Remove aggressive weeds competing with desired plants.
- After significant rain:
Clear accumulated debris (leaves, branches, trash) that might clog flow or smother vegetation. Check for erosion or check dam damage.
Water should infiltrate within 24-48 hours; if ponding persists longer, you may have compaction or sediment buildup issues.
- Seasonally:
Apply thin compost layer in spring if needed for soil health. Remove accumulated sediment when it reduces swale capacity by 25% (typically every 3-5 years).
Cut back perennial growth in late fall or early spring. Refresh plantings as needed—some species may become too dominant or decline over time.
- Winter considerations:
Keep deicing salt away from swales. Avoid plowing or compacting snow into them, as this delays spring drainage and can damage plants. Don’t pile snow on vegetation.
Here’s How to Prepare Your Farm for Winter: Essential Tips for Farmers
Common Problems and Solutions
- Swale isn’t draining:
This usually indicates soil compaction or sediment accumulation. Remove accumulated sediment and use a garden fork to aerate compacted areas. If native soil infiltration is the problem, consider installing an underdrain or amending soil.
- Erosion in the channel:
Water velocity is too high. Add check dams to slow flow, increase vegetation density, or place erosion control fabric and river rock at the inlet where water enters. Steeper side slopes may need to be regraded more gently.
- Plants dying in wet areas:
Species may be poorly matched to conditions. Replace with more water-tolerant natives. Conversely, plants dying in dry areas need either more drought-tolerant species or adjustment to swale depth/width to retain more moisture.
- Overflow causing problems:
Your spillway may be poorly positioned or sized. Redirect overflow to a better location, enlarge the swale to handle more volume, or add a secondary swale to share the load.
- Mosquito breeding:
Standing water persisting beyond 48-72 hours enables mosquito reproduction. Improve drainage through soil amendment, underdrain installation, or check dam adjustment. Properly draining swales don’t breed mosquitoes.
Discover 26 Best Mosquito Repelling Plants for Your Garden
Legal, Regulatory, and Neighbor Considerations
Small residential swales typically don’t require permits, but regulations vary. Check with your local building or planning department, especially for projects:
- Near property lines (you’re responsible if drainage impacts neighbors)
- Involving significant grading or earth moving
- Connected to municipal stormwater systems
- In areas with specific stormwater ordinances
Homeowners associations may have covenants restricting drainage features or appearance. Review restrictions before building and consider submitting plans for approval.
Liability concerns arise if your swale directs water onto neighboring properties or creates hazards. Proper design ensuring water drains away from neighbors, adequate safety setbacks from pathways, and appropriate depth all minimize risk.
Making the Investment Pencil Out
Professional installation of a typical residential swale (30-40 feet long) ranges from $3,000-$8,000 depending on complexity, site access, and regional labor costs.
DIY construction reduces costs to materials only—typically $300-$800 for plants, mulch, and amendments.
Compare this to conventional solutions: underground drainage systems with pipes and catch basins often cost $15,000-$30,000 or more for the same drainage area.
The maintenance cost difference is even more striking—swales require primarily mowing and occasional weeding, while piped systems need periodic inspection, cleaning, and eventual replacement.
Water bill savings depend on your climate, irrigation needs, and swale size, but homeowners commonly report 30-50% reductions in supplemental watering.
For a household spending $100 monthly on irrigation, that’s $360-$600 annual savings.
The swale pays for itself in 5-10 years while providing immediate flood prevention and water quality benefits.
Real-World Performance
1. A Seattle neighborhood that implemented swales throughout the development during a retrofit project experienced zero basement flooding during a major storm event that caused dozens of flooding incidents in surrounding areas without swales.
The swales captured and infiltrated an estimated 70% of the storm’s runoff.
2. In Brampton, Ontario, monitored swales showed runoff volume reductions of 15-35% depending on soil conditions, with pollutant removal rates exceeding 75% for sediments and 50-60% for nutrients.
More impressively, these results were achieved with relatively simple enhanced grass swale designs, not expensive bioswales.
3. Agricultural applications in Morocco’s Atlas Mountains demonstrated swales’ erosion control capabilities, reducing soil loss from over 25 tons per hectare annually to negligible amounts while establishing productive tree systems in previously barren landscapes.
Your Path Forward
You now understand what swales are, how they function, and whether they’re appropriate for your property. Here’s your action plan:
- This week: During the next rain, observe water movement across your landscape. Take photos of problem areas. Note where water comes from and where it goes.
- This month: Conduct soil infiltration tests in potential swale locations. Sketch your property marking runoff sources, problem areas, and swale possibilities.
- Next season: Build your first swale—start modestly with one 15-20 foot section addressing a specific problem. You’ll gain experience with manageable scope and can expand based on results.
The water falling on your property is a resource, not a problem. Swales help you capture and use that gift rather than sending it away.
Whether motivated by lower water bills, environmental stewardship, better plant health, or simply tired of erosion and flooding, swales offer a practical, time-tested solution working with nature instead of against it.
The next rainstorm could be the beginning of your property’s transformation. Is it time to dig your first swale?
source https://harvestsavvy.com/what-is-a-swale/
No comments:
Post a Comment
